DLyte
DLyte is the world’s first dry electropolishing process designed for metal and alloy components. Using patented DryLyte technology, this fully automated solution streamlines multiple tasks such as edge rounding, deburring, surface smoothing, and high-gloss polishing - into a single, clean process.
- Automated & Efficient: Reduces manual labor and errors with a repeatable, fully automated process.
- Eco-Friendly Operation: Solid electrolyte replaces conventional chemicals, reducing waste and environmental impact.
- Consistent Finish Quality: Delivers mirror-like polishing, smoothing and precise deburring results homogeneous across complex geometries and part batches.
- Optimized for Complex Geometry: Effectively polishes difficult-to-reach internal cavities and intricate details, making it ideal for high-precision applications including additive manufacturing.
- Machine Lineup: Product ranges from small to large units suited for focused industries like medical, luxury, tools, pharma, labs and more.
- DryLyte Media: Patented dry electrolyte media that enables safe, ion-based surface finishing without liquid solutions.
- Automated Workflow: One-step process handles deburring, rounding, and polishing with minimal operator intervention.
- Alloy Compatibility: Compatible with a range of alloys like stainless steel, titanium, nickel alloys, cobalt chrome, and other common industrial metals.
DLyte Models

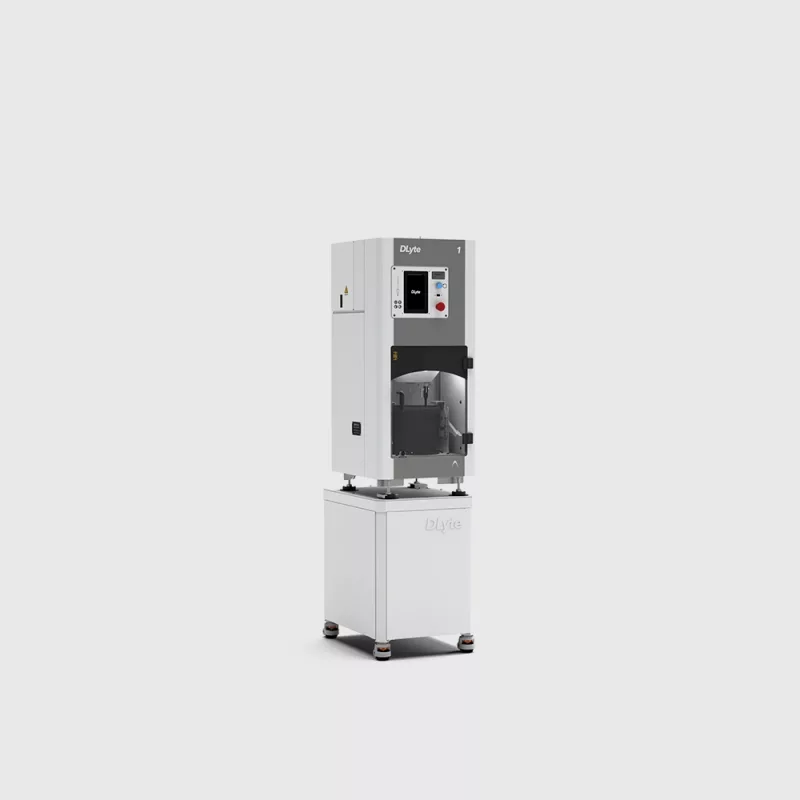

DLyte 1
DLyte 1
Smallest model, it supports parts up to Ø 90 mm x 70 mm, and max. weight of 1.5 kg.
DLyte 10
DLyte 10
Suitable for medium volume production, it supports parts up to Ø 140 mm x 75 mm, and max. weight of 2.5 kg.

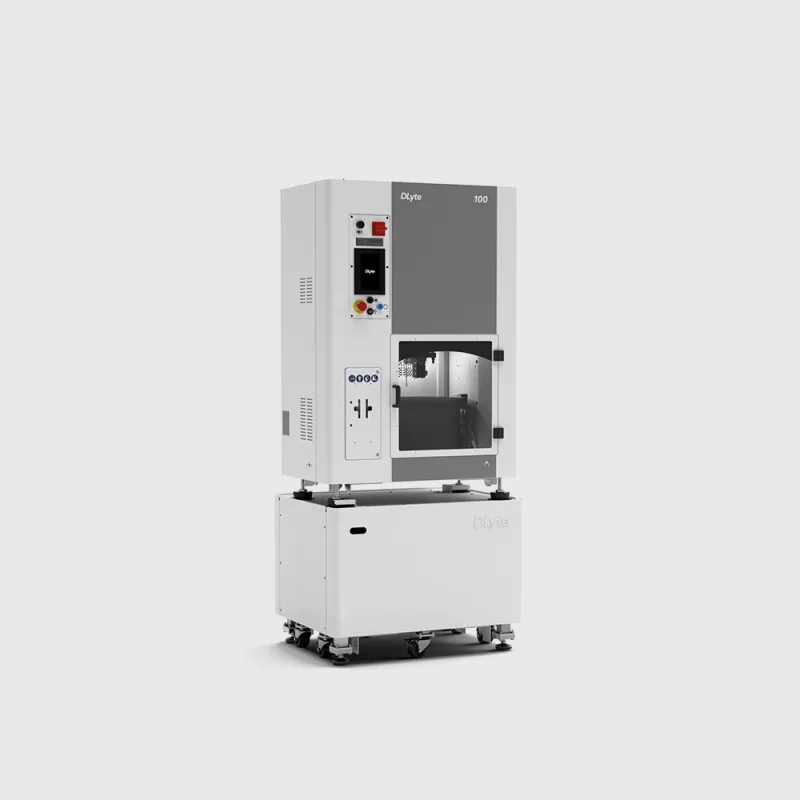

DLyte 100 / 100PRO
DLyte 100 / 100PRO
Suitable for medium to large volume production, it supports parts up to Ø 180 mm x 80 mm, and max. weight of 5 kg. Model 100PRO supports parts up to Ø 180 mm x 80 mm, and max. weight of 8 kg

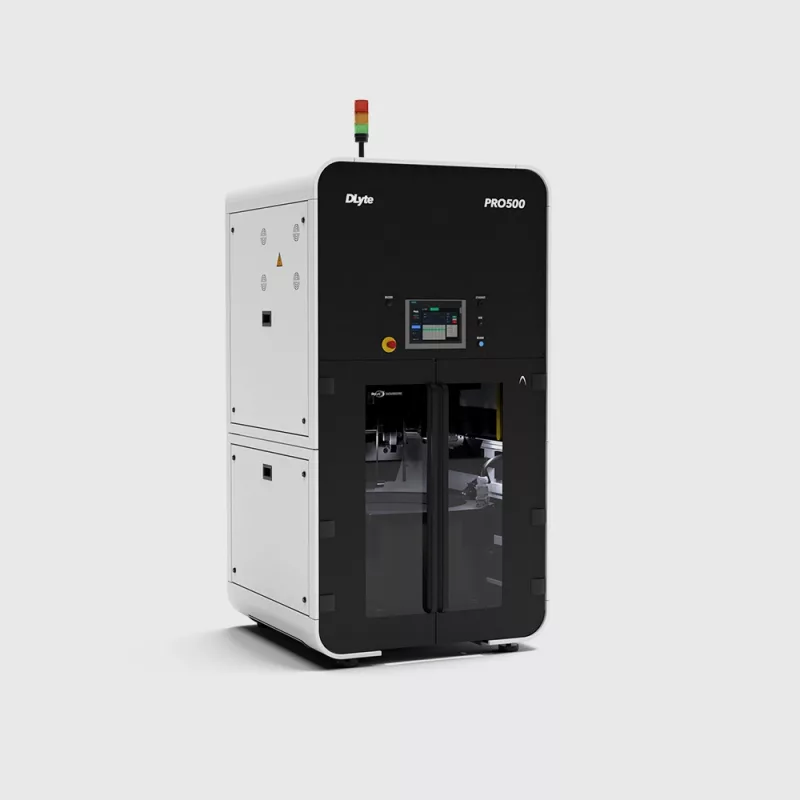

DLyte PRO500
DLyte PRO500
Suitable for extensive requirements of major production industries and achieve processing times up to ten times faster, it supports Ø 500 mm x 250 mm (x1) < Ø 200 mm x 200 mm (x8).
Technical Specifications
Up to Ø360 x 250 mm (x2);
Up to Ø310 x 250 mm (x4);
Up to Ø200 x 200 mm (x8);
Popular Applications
Aerospace
Enhances efficiency and reliability under high-stress conditions, improving performance and safety.
Automotive
Improves component durability, ensuring vehicle safety, performance, and longevity.

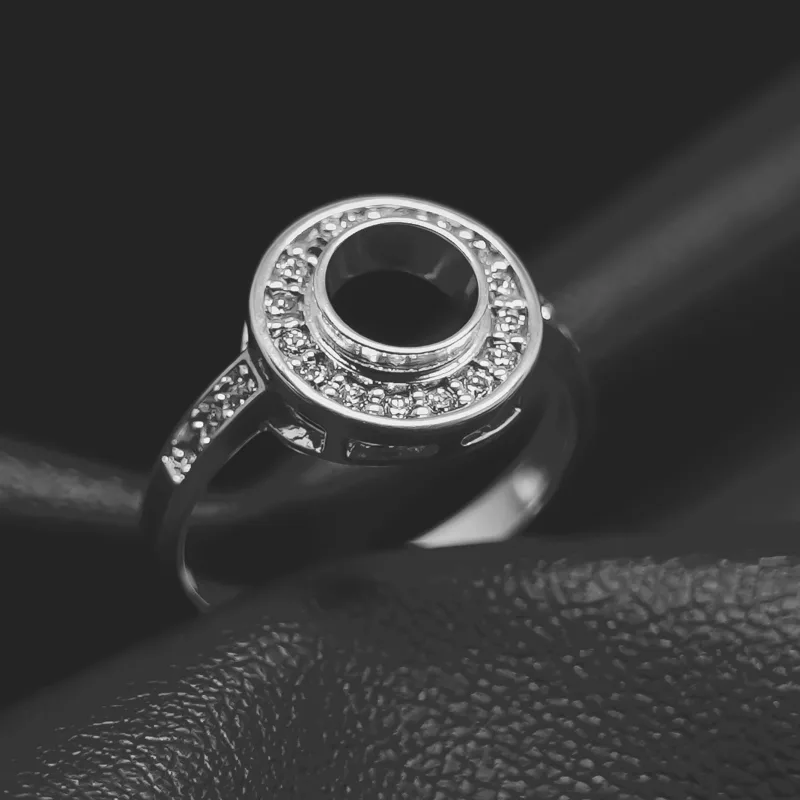

Jewellery & Fashion
Achieves flawless aesthetics, especially for complex designs, enhancing visual appeal and value.

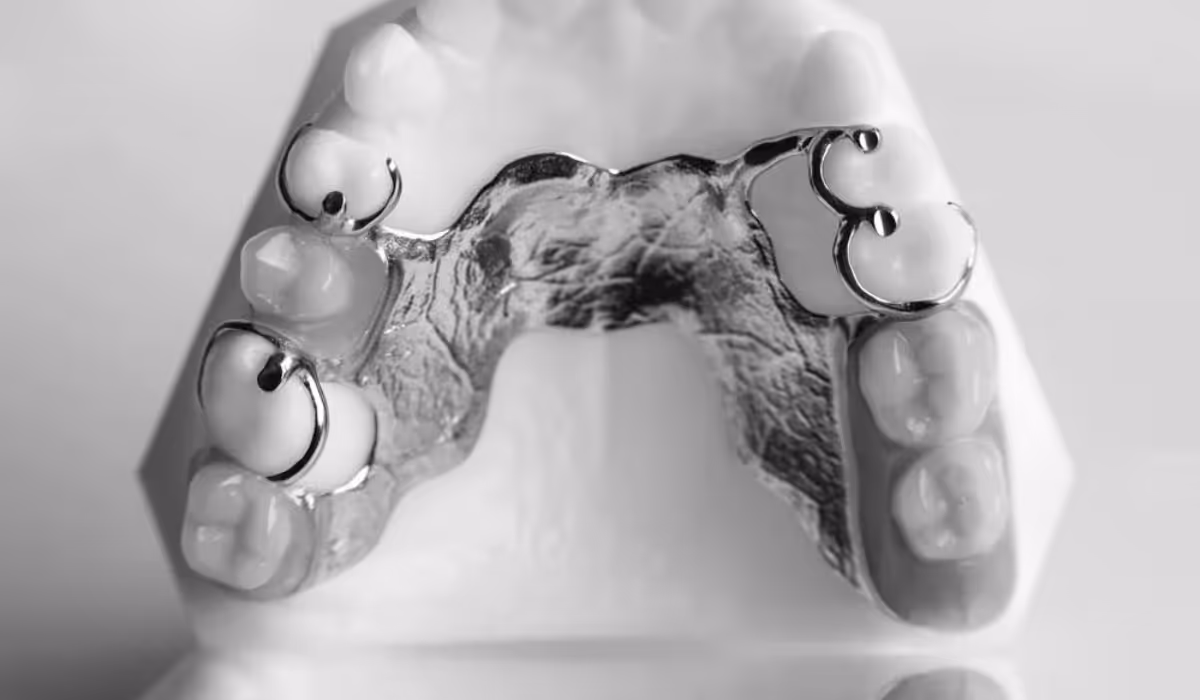

Dentistry
Extends the lifespan of dental prosthetics and other implanted dental parts by smoothing and cleaning surfaces.

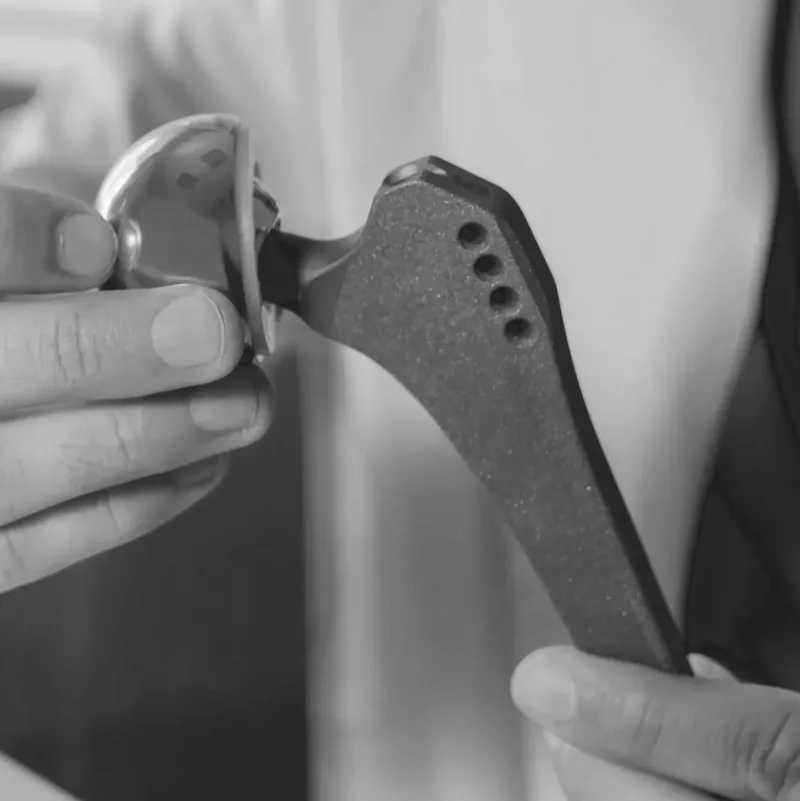

Medical Device
Ensures biocompatibility and corrosion resistance for implants, instruments, and equipment components as well as their lifespan.
Cutting Tools
Enhances tool longevity and preserves geometry while improving surface quality with precision finishes.

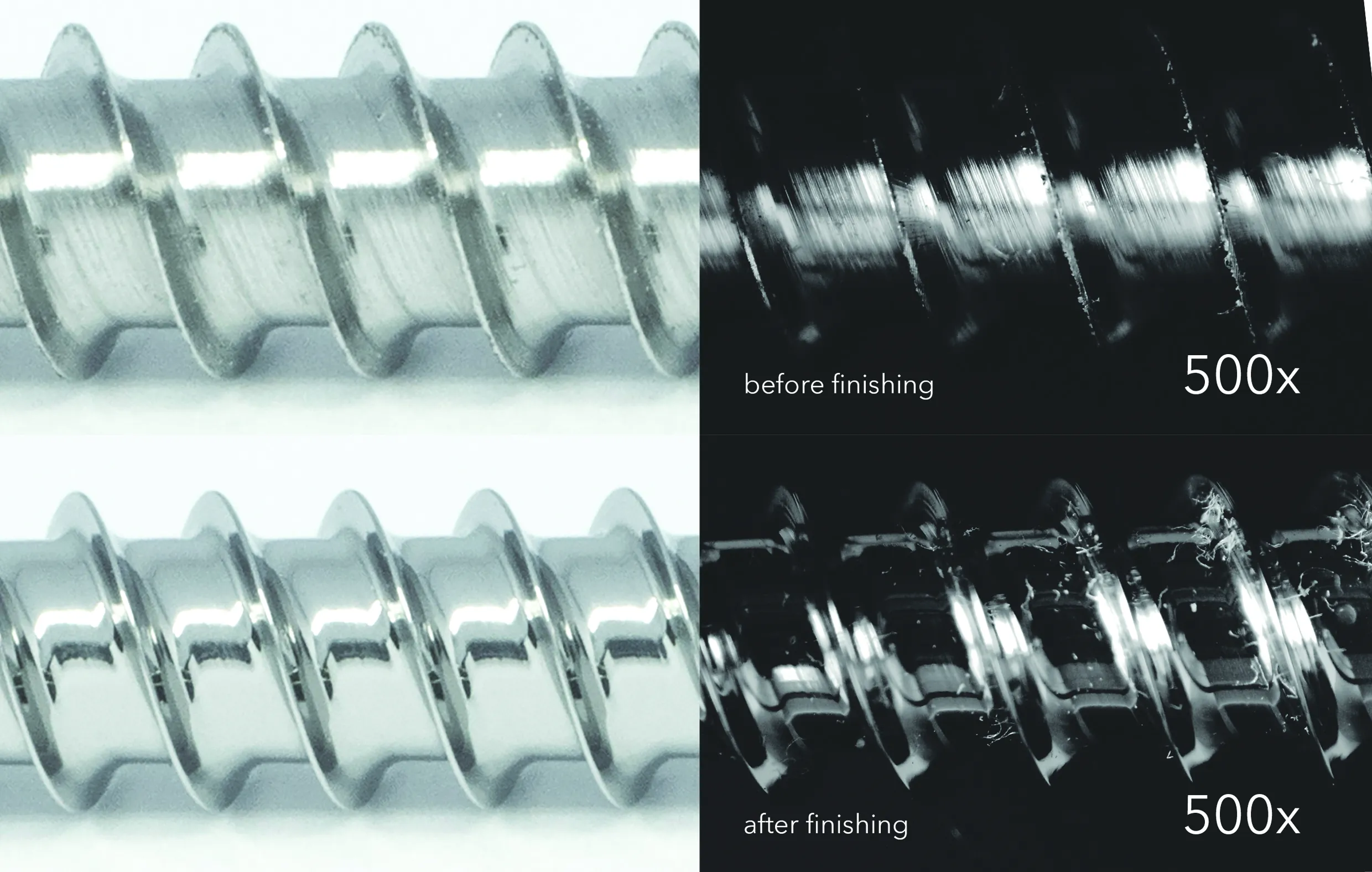

The Finishing Process Revolution
- Precision surface finishing
- Smoothing
- Mirror finishing
- DeburringRounding
- Corrosion resistance
- Additive manufacturing post-process
- Inner channels polishing
The Process
Step 1 Part Preparation
Parts are cleaned and mounted securely to the designated holder.
Step 2 Machine Setup
Load the holder into the machine and select the optimized polishing program based on the media type.
Step 3 Automated Polishing
The machine runs the pre-set cycle, performing the full electropolishing process automatically.
Step 4 Unload & Inspect
Once complete, unload the part and gently remove any remaining media with water or a soft cloth.
Need Help Choosing the Right DLyte Model?
Let our knowledgeable team guide you through the right options based on your needs.
