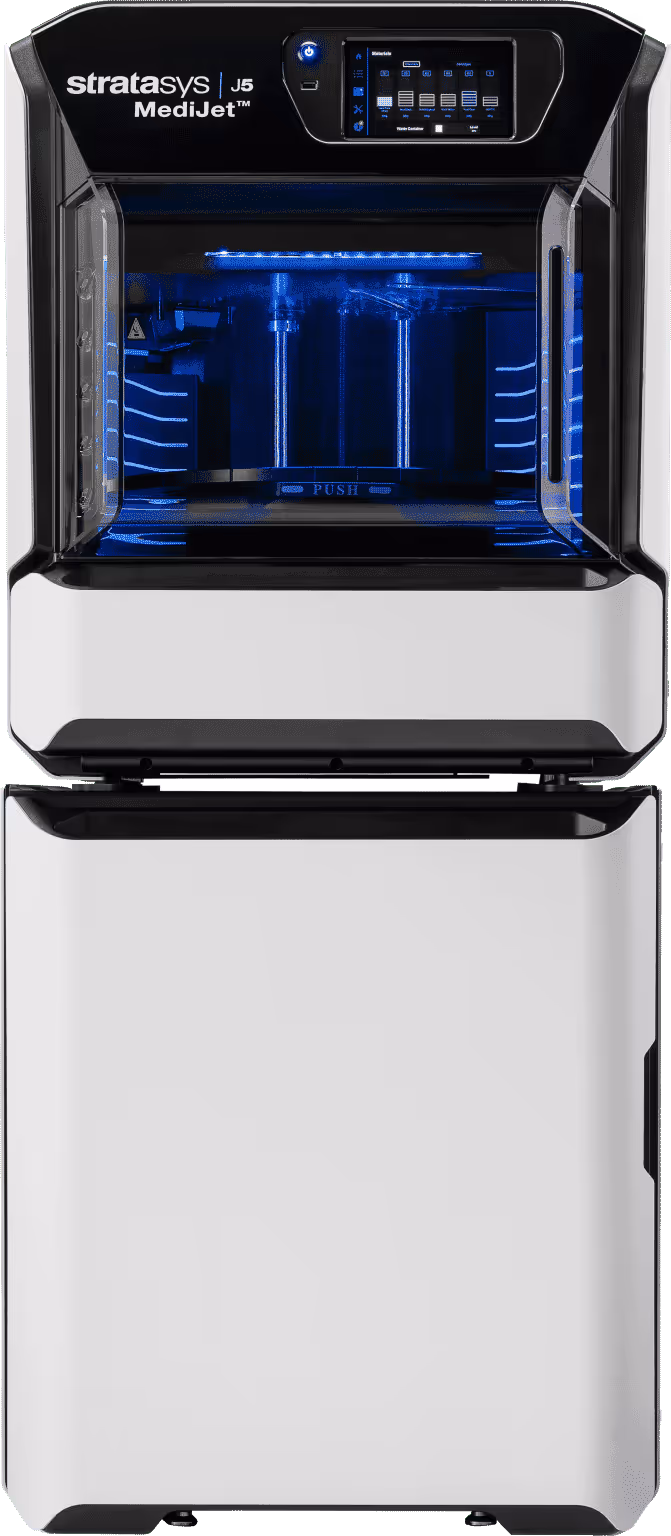

Stratasys J5 MediJet

Medical‑focused PolyJet 3D printer with biocompatible materials and multi‑material capabilities to create brilliantly vivid anatomical models, drilling, and cutting guides.

All-in-one platform for printing pre-surgical planning models, surgical guides, training models, and medical device prototypes
Offers multi-material, multi-colour and multiple parts per build on the same tray
Lower total cost of per part up to 30% vs. comparable outsourced solutions

The J5 MediJet redefines what’s possible for hospitals, academic medical centers, and medical device companies. From medical modeling to workflow optimization, every application need is met with a single platform - no multiple printers required.

Technical Specifications

Build Envelope (XYZ)

Round tray up to 1,174 cm² printing area; Max part size 140 x 200 x 190 mm

System Size & Weight

System: 651 × 661 × 1511 mm; 228 kg

Support Structures

SUP710 (water‑jet removable)

Layer ThicknessUV Wavelength

18 μm (HQS mode 18.75 μm)

Achievable AccuracyLaser Spot Diameter

±150 μm (<100 mm); ±0.15% (>100 mm)

Popular Applications

Medical & Dental

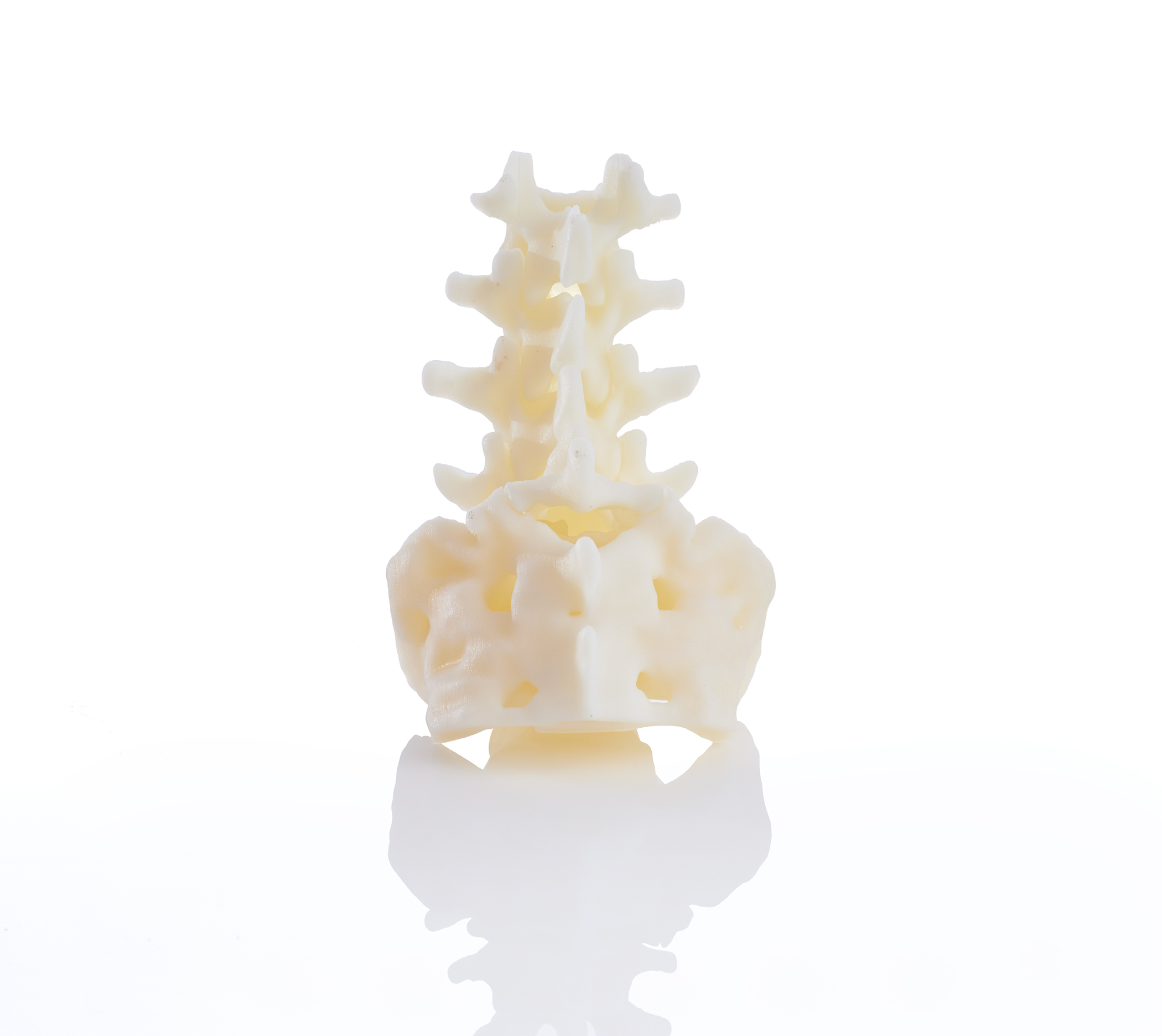

Enables production of patient-specific medical models, surgical guides, custom implants, and dental appliances with biocompatibility and precision.

Rapid Prototyping

Accelerate your design cycle with rapid 3D prototyping. Turning concept into physical models for design validation, product iteration, and accelerated innovation cycles. Let your design ideas take flight.
