PolyJet Medical

Stratasys J5 Digital Anatomy

Compact Digital Anatomy printer that delivers biomechanically accurate, highly realistic anatomical models replicating the feel and responsiveness of human anatomy.

Key Benefits
Features
  • Extensive library of anatomical presets simplifies the simulation of clinical situations.
  • Unique biocompatible materials include GelMatrix, TissueMatrix, BoneMatrix
  • Offers multi-material, multicolour and multiple parts per build on the same tray
  • Suitable for medical device companies, point-of-care facilities and academic medical centres

Compact in size but unmatched in performance, the J5 Digital Anatomy 3D Printer powered by its exclusive certified materials, digital anatomy software and Polyjet technology to create biomechanically accurate, functional anatomical models.

Technical Specifications

Build Envelope (XYZ)

Round tray up to 1,174 cm² printing area;  Max part size 140 x 200 x 190 mm

System Size & Weight

651 x 661 x 1511 mm ; 228 kg

Support Structures

SUP710S; WSS150

Layer ThicknessUV Wavelength

Horizontal build layers down to 18-micron

Achievable AccuracyLaser Spot Diameter

±100 μm (<100 mm) typical;  ±0.15% part length (>100 mm)

Popular Applications

Medical & Dental

Enables production of patient-specific medical models, surgical guides, custom implants, and dental appliances with biocompatibility and precision.

Rapid Prototyping

Accelerate your design cycle with rapid 3D prototyping. Turning concept into physical models for design validation, product iteration, and accelerated innovation cycles. Let your design ideas take flight.

Design

Empower design creation with 3D design that include full-color, multi-material capabilities to bridge the gap between concept and reality.

Model Materials

We offer a wide variety of materials to match your printing needs. Below are some of the options you can explore.

PJ MED610

Clear, biocompatible medical-grade resin

Compatible Printers

J5 Medijet, J750, J850, Objet30 Prime

Primary Applications

Surgical planning, training, medical device prototypes and surgical guides.

Available Colours

Transparent

HDT
Shore Hardness
Elongation at Break Percent
Key Facts

PJ Elastico

Tear-resistant for repeated flexing

Compatible Printers

J5 Medijet, J55 Prime, J35 Pro

Primary Applications

Soft-touch coatings, living hinges, grips, seals.

Available Colours

Black, Clear

HDT
Shore Hardness

40-50 Scale A

Elongation at Break Percent

360-400%

Key Facts

PJ GelMatrix

Soft tissue simulation material

Compatible Printers

J850 DAP, J5 DAP

Primary Applications

Anatomy presets such as gel support, liver, subcutaneous fat, and pure gel support

Available Colours

Translucent

HDT
Shore Hardness
Elongation at Break Percent
Key Facts

PJ BoneMatrix

Simulates bone-like rigidity and texture

Compatible Printers

J850 DAP

Primary Applications

Anatomical models

Available Colours

Translucent

HDT
Shore Hardness
Elongation at Break Percent
Key Facts

PJ Tissue Matrix

Mimics soft organ tissue

Compatible Printers

J850 DAP

Primary Applications

Medical models

Available Colours

Translucent

HDT
Shore Hardness
Elongation at Break Percent

170%

Key Facts

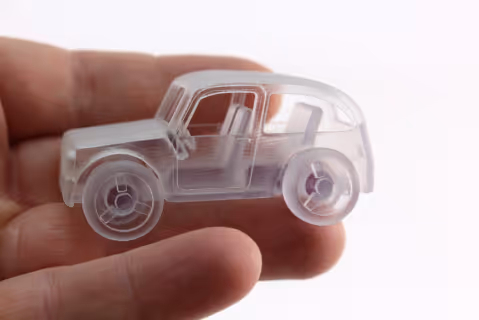

PJ VeroClear

Transparent acrylic-like material

Compatible Printers

J826 Prime, J850 Pro, J850 Prime, J850 DAP, J55 Prime, Objet30 Pro & Prime, J750

Primary Applications

Concept modeling, design verification of clear parts like eyewear, light covers, and medical devices.

Available Colours

Clear

HDT
Shore Hardness
Elongation at Break Percent
Key Facts
