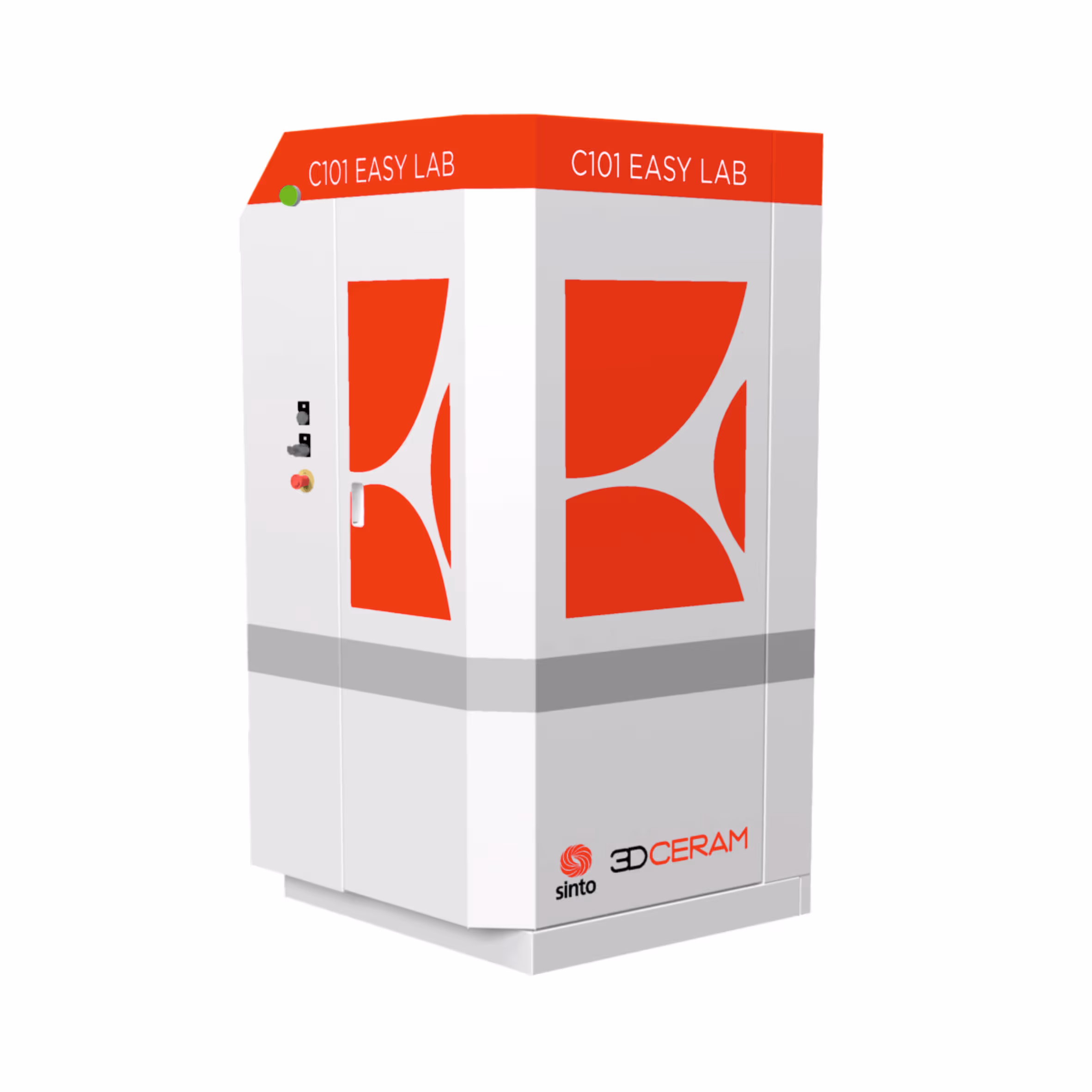

3DCeram C101 EASY LAB
R&D ceramic 3D printer for material/process development with SAM option for very low slurry volumes.
- Develop/qualify materials & designs, dedicated to research centers and universities
- Start prints with as little as 15 mL slurry (SAM)
- Lab mode; optional smaller 60×60×150 mm platform
Top‑down laser stereolithography; small-amount-of-material (SAM) workflow; research‑oriented modes.
Technical Specifications
100 × 100 × 150 mm (option: 60 × 60 × 150 mm)
1020 x 1005 x 1976 mm ; approx. 600kg
Top‑down SLA; few or no supports required
UV Wavelength
405 nm
Laser Spot Diameter
~ 60 µm
Popular Applications
%20Printed%20Model_2%20J5%20Digital%20Anatomy%20Printer.avif)
%20tooling.avif)
Model Materials
Supports a wide range of technical ceramics.
Alumina (Al₂O₃)
Biocompatible, electrically insulating, high hardness and wear resistance
C101 EASY, C900 FLEX, C3601 ULTIMATE, C1000 FLEXMATIC
Biomedical (implants), electronics, aerospace, mechanical engineering, foundry cores, spatial.
- Operating temperature up to ~1600°C
- Cost-effective and widely used
- High dielectric strength
Aluminium Nitride (AlN)
High thermal conductivity, excellent electrical insulation, good mechanical strength
C101 EASY, C900 FLEX
Electronics industry – substrates, heat sinks, and circuit components
- Commonly used in power electronics, LEDs, and microelectronic packaging.
- Maintains stability in high-temperature and high-voltage environments
Hydroxyapatite (HAp)
High biocompatibility, osteoconductive
C101 EASY, C900 FLEX, C1000 FLEXMATIC
Biomedical implants, bone scaffolds
- Similar chemical composition to natural bone
- Promotes bone growth
- Used in custom orthopaedic and dental implants
Silicore
Porous structure, high mechanical strength, stable at high temperatures
C101 EASY, C900 FLEX, C1000 FLEXMATIC
Foundry cores
- Excellent leachability
- Custom-made for high-temp core-making in complex castings
- Compatible with all alloys except cobalt
Zirconia 3Y
High hardness, chemical inertness, excellent mechanical properties
C101 EASY, C900 FLEX, C1000 FLEXMATIC
Dental crowns and bridges, orthopedic implants, wear-resistant components, electronics
- Used in high-stress environments
- Ideal for precision components requiring both aesthetics and strength
- Typically sintered at ~1450–1550°C for full density
Zirconia 8Y
Excellent ionic and oxygen-ion conductivity, thermal insulation.
C101 EASY, C900 FLEX, C1000 FLEXMATIC
Fuel cells, energy systems
- Used in solid oxide fuel cells (SOFCs)
- Functions efficiently under extreme heat
