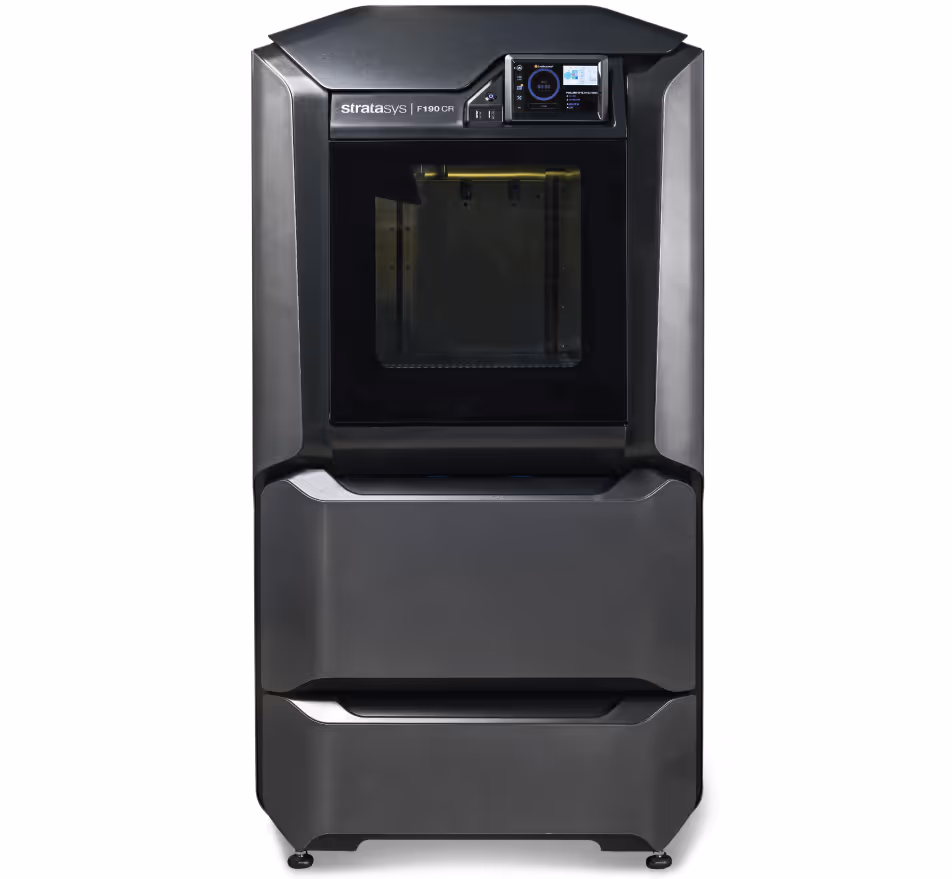

Stratasys F190CR

Composite‑ready FDM system optimized for stiff, lightweight carbon‑fiber reinforced parts to produce strong workholding fixtures, tooling, and part.

Carbon‑fiber reinforced parts with high stiffness‑to‑weight
305 × 254 × 305 mm build volume.
Office‑friendly reliability and repeatability, F123CR series

The F190CR, part of the F123CR series, is a composite-ready FDM 3D printer designed for strength, stiffness, and precision. Supporting carbon fiber-reinforced materials like ABS-CF10 and FDM Nylon-CF10, it’s ideal for producing durable functional prototypes, jigs, and fixtures with exceptional accuracy and reliability.

Technical Specifications

Build Envelope (XYZ)

305 × 254 × 305 mm (12 × 10 × 12 in)

System Size & Weight

Approx. 1626 × 864 × 711 mm; ~227 kg (with consumables)

Support Structures

SR series soluble; breakaway for some composite materials

Layer ThicknessUV Wavelength

127, 178, 254, 330 um

Achievable AccuracyLaser Spot Diameter

±0.200 mm or ±0.002 mm/mm (whichever greater)

Popular Applications

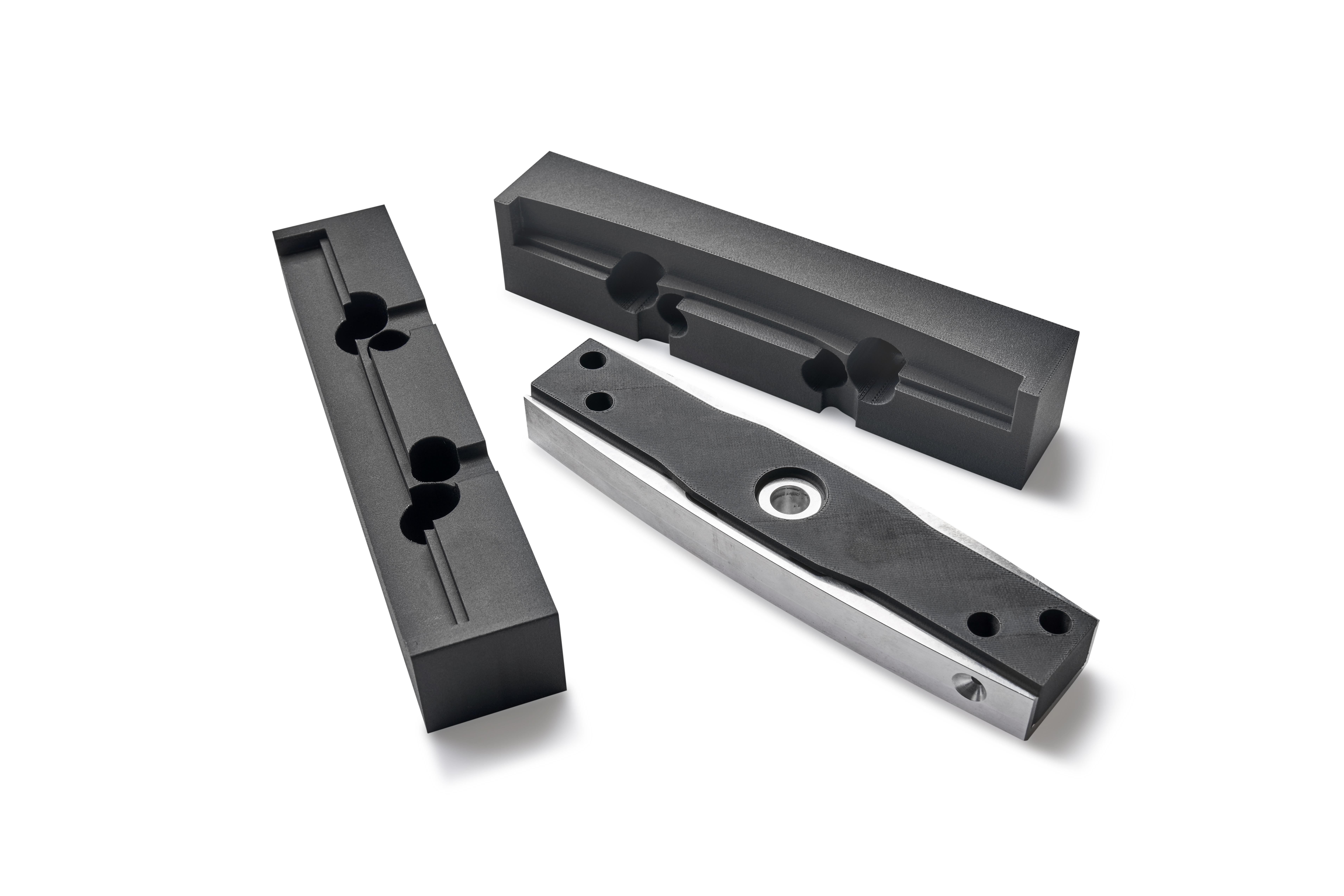

Jigs & Fixtures

Offer an efficient solution to your team to create jigs and fixtures, assembly and inspection aids, end-of-arm tooling, soft jaws, and forming dies with speed, precision and design flexibility.

End-Use & Production Parts

Transform ideas into durable, functional end-use or finished-good parts that’s ready for real-world use and low-volume production, with the freedom to design without limits.

Manufacturing Support

Keep your factory floor agile with on-demand 3D-printed solutions that boost efficiency, cut downtime, and ensure accuracy where it matters most.

Toolings

Create composite tooling molds, lay-up tools, metal processing tooling, trimming fixtures, and production tooling with reduced cost and time.

Design

Empower design creation with 3D design that include full-color, multi-material capabilities to bridge the gap between concept and reality.

Model Materials

We offer a wide variety of materials to match your printing needs. Below are some of the options you can explore.

ABS-CF10

Carbon fiber-reinforced

Compatible Printers

F170, F190CR, F370, F370CR

Primary Applications

End effectors, ergonomic aids, alignment fixtures

Available Colours

Black

HDT

@ 264 psi: 233°F

Shore Hardness

Elongation at Break Percent

Key Facts

ABS-M30

Opaque standard plastic

Compatible Printers

F170, F190CR, F370, F370CR, F770, Fortus 450mc, F900

Primary Applications

Concept modeling, functional prototyping, jigs & fixtures

Available Colours

ivory, white, black, dark grey, red, blue, orange, yellow, green

HDT

@ 264 psi: 211.7°F

Shore Hardness

Elongation at Break Percent

Key Facts

ASA

UV-resistant with excellent aesthetics

Compatible Printers

F170, F190CR, F370, F370CR, F770, Fortus 450mc, F900, F3300

Primary Applications

Outdoor commercial & infrastructure end-use parts, consumer goods prototyping

Available Colours

ivory, black, dark grey, light grey, white, red, orange, yellow, green, dark blue

HDT

@ 264 psi: 209°F

Shore Hardness

Elongation at Break Percent

Key Facts

FDM TPU 92A

Flexible elastomer with toughness

Compatible Printers

F170, F370, F190CR, F370CR

Primary Applications

Manufacturing support like hoses, tubes, air ducts, seals, protective covers, vibration dampeners, gaskets, mats, liners, wheels, bellows, manufacturing aids

Available Colours

Basic Grade: Black
Validated Grade: Red

HDT

Shore Hardness

Elongation at Break Percent

Key Facts
